How to Adjust the Main Jet on a Carburetor? [Anwesered]
![How to Adjust the Main Jet on a Carburetor? [Anwesered]](https://5pj620.p3cdn1.secureserver.net/wp-content/uploads/2023/02/How-to-Adjust-the-Main-Jet-on-a-Carburetor-2.png?time=1712112229)
As a motor vehicle owner, you must frequently adjust the system to ensure the engine runs and performs optimally.
Adjusting the main jet on a carburetor is usually fairly simple. Today, I outlined simple steps to help you learn how to adjust the main jet on a carburetor and the tools required for the procedure.
I am a motorcycle enthusiast and have been servicing my carburetor for over eight years for crisp engine performance. Adjusting the main jet is very simple, and I can help you do it even if you are new to carb servicing.
Table of Contents

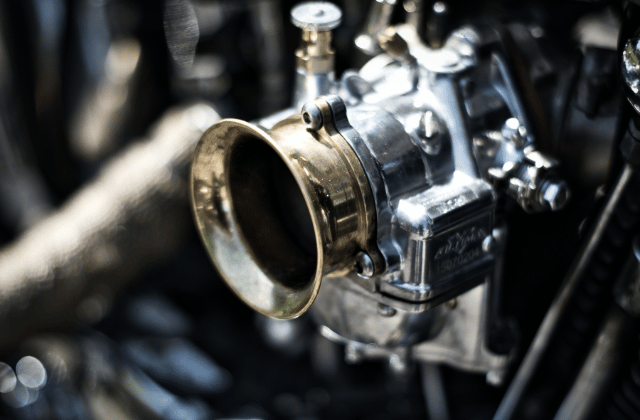

How Do You Adjust the Main Jet on a Carburetor?
To adjust the main jet on a carburetor, start your engine and leave it to warm to running temperature. Then, adjust the idle mixture screw to get the air and fuel mixture right. You will have to observe the engine’s condition after the adjustments to see whether the engine is running lean or rich. Afterward, adjust the idle speed until the engine runs smoothly both at idle and while revving.
The main jet is fairly easy to adjust, as you will see in the section below. However, the layout of your machine will determine how much work you have to do when making the adjustments. You can refer to your machine’s factory service manual for specific information on servicing the carburetor.
Adjusting the Main Jet on a Carburetor: A Step-by-Step Process
Carburetors use different circuits to control various parts of the engine speed/load range. When adjusting a main carburetor jet, the major adjustments are on the air-fuel mixture and the idle air speed.
Materials Needed
- A set of screwdrivers
- Float bowl wrench
- Tachometer
- Temperature gauge
Step 1: Adjusting the Air-Fuel Mixture
Step 1: Remove the engine air filter
You need to find and remove the air filter assembly to expose the carburetor. Depending on your engine or vehicle’s make and model, the air filter could be located differently.
In most cases, you will only need simple hand tools to remove the air filter since it is only secured using a wing nut. Gently unscrew the wing nut and its connectors. Then take off the air filter entirely from the engine. Remove the float bowl only if it is recommended.
Step 2: Start and warm up the engine
Before making jetting changes, starting the engine and leaving it to warm to its running temperature is best. This makes the engine directly correlate with proper air and fuel mixtures. You can know when it reaches the appropriate running temp by checking using the temperature gauge.
Note: If you’re using a manifold vacuum port, connect a vacuum gauge to it before starting the engine.
Step 3: Locate the adjustment screws
Familiarize yourself with the adjustment screws by the front of the carburetor, then locate the idle mixture screw. You should be able to see two flat-head screws; an idle mixture screw and an idle speed screw.
Some carburetors may have four idle mixture screws, while others have two. Also, other carburetors may have a special screw that needs a specific adjusting tool instead of the standard screwdriver. For instance, the Quadrajet requires a Double “D” carburetor adjusting tool.
You can check your service manual to make sure that you locate the correct screws and prevent yourself from making the wrong adjustments.
Step 4: Adjust the idle mixture screw
Use a flat-head screwdriver to turn the idle mixture screw and adjust the fuel and air mixing in the carburetor. Loosening the screws decreases the amount of fuel, while tightening them increases the amount.
To do this, back the adjustment screws off until the engine begins to run lean, and then tighten them down. You can turn the screws in or out by ⅛ or ¼ turn increments. This way, you prevent the fuel from changing abruptly. Otherwise, your engine’s performance could be significantly impacted.
Ensure you adjust smoothly and equally if you have more than one idle screw until you find the right mixture. You can also use a scanner to check the air-fuel mixture to find the right adjustment.
Pro Tip: The RPM (rotations/revolutions per minute) will drop once the engine runs slightly lean. You will notice that your engine runs rough, pops, and sputters until it stalls. The idle speed will remain steady once the engine runs smoothly and without shaking, is balanced, and has no misfires. If you still have problems, consider getting a professional to help inspect the engine’s idle.
Step 5: Observe the engine’s condition
Allow the engine to adjust for a few seconds after every screw turn you make. Then take note of its running condition at operating temperature and see whether it is running lean or rich. If the vacuum increases or the engine speed smoothes out, adjust the screws further till it hits the peak vacuum or engine speed. When the vacuum drops or the engine gets rougher, screw in the opposite direction.
Step 2: Adjusting the Idle Air Speed
Step 1: Bring the engine to its operating temperature.
Ensure you are still adjusting at the actual running temperature, just as you did with the air-fuel mixture. Allow the engine to run for about 5 – 10 minutes at 50% throttle to bring it to operating temperature.
Step 2: Locate the idle speed screw.
After adjusting the air-fuel mixture screws, locate the idle speed screw. You should be able to see the screw close to the throttle plate. However, the idle mixture screw’s precise location varies with your engine’s make and model. You can check the service manual to ensure you locate the correct screws, so you don’t make wrong adjustments.
Step 3: Test the engine when it is idle and when it is revving.
After meeting the top running condition, rev the engine and observe if it continues to run smoothly at higher RPMs. Rotate the idle mixture screw clockwise slowly until the engine begins to slow. Repeat the same process anticlockwise, and then return the screw to the midpoint.
The engine should rev quickly and smoothly as soon as you apply throttle. Ensure the throttle response is crisp and responsive. The idle run condition may change after revving, so you may need to apply more adjustments to the air-fuel mixture screws, as mentioned in point 1.4.
Step 4: Adjust the idle speed screw.
If you observe any shaking or vibration, continue adjusting the speed until the engine runs smoothly. It should be smooth through the full rpm range, both at idle and while revving. Turn the idle speed screw clockwise to increase rpm, no more than a half-turn, and counter-clockwise to decrease rpm.
Make slow turns and listen closely to the car’s engine for sounds of roughness. Repeat the idle mixture screw adjustments if necessary.
Depending on your owner’s manual, you can turn the idle speed screw to set the engine to between 950 – 1750 RPMs. Use a tachometer to gauge the engine speed.
Step 5: Reinstall the air filter.
After adjusting the idle to the proper specifications, switch off the engine and re-fit the air filter. You can take your vehicle for a test drive to ensure the engine runs smoothly across all speeds. Note the engine performance and make further adjustments if necessary.
Ensure you follow these safety tips through the entire procedure.
- Some engine parts can become very hot and can cause second or third-degree burns. Stay clear of hot surfaces, so you don’t burn yourself.
- Your finger should not come into contact with the opening of the carburetor. A running engine may form a fireball through the carburetor, which could cause severe injury.
- Look out for any fuel leaks. Fuel leaks on carburetors found on older vehicles are always possible.
- You should wear protective gloves and safety glasses because you will be working around strong chemicals and moving parts.
- Never place your fingers near the engine fan to avoid any accidents.
If your bike engine is backfiring then you can check out the Biker Rights article on why your bike is back fire while driving.
Frequently Asked Questions
How Do You Know if Your Main Jet Is Too Big?
If the main jet is too big, you will notice the following symptoms:
– Spitting or popping through the carburetor occurs when you open the throttle.
– The engine pings, knocks, runs hot, and overheats.
– The carb can not reach max rpm or peak power easily.
– Hesitation or sputtering on full-throttle acceleration.
– The engine gets harder to start when hot.
– The engine surges or hunts when cruising at part-throttle.
What Is the Main Jet on a Carburetor For?
A carburetor’s main jet is accountable for supplying the fuel that mixes with air traveling to the engine intake tract. It controls the fuel mixture when you are at about 80% to full throttle. There is an overlap under 80% to full throttle, so that is where most of your tuning will occur.
Does the Main Jet Affect the Needle?
The main jet in your carb can affect the needle, especially when the throttle opening increases to 80% throttle. Roughly 20% to 80% of throttle slide lift can raise or lower the needle to make fueling richer or leaner. The fuel flows up and out through the main jet into the needle jet. Within the needle is a needle with a smaller diameter at the bottom than at the top. The tapered needle shape controls the amount of fuel coming from the main jet and through the needle jet.
Final Thoughts
You always need to configure the carburetor, as changes in altitude and weather impact the engine performance. Adjusting the main jet on the carburetor ensures the right amount of fuel reaches the engine throughout its entire load range and speed. The main goal for making these adjustments is to establish proper fuel and air mixture at idle. This way, the engine can run as smoothly as possible.
Pro Tip: It is best to start with the settings recommended by the aftermarket component supplier when adjusting a main carburetor jet. Also, you have to perform the procedure with the right steps while making one adjustment at a time.
